Cab Suspension Bushings

RXA0161212-UN-26OCT17

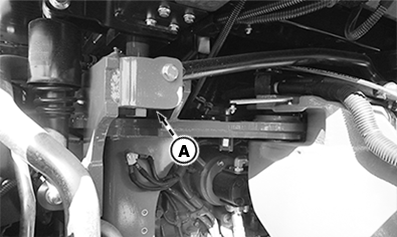

Behind and Below Cab on Left-Hand Side of Tractor

RXA0161213-UN-26OCT17

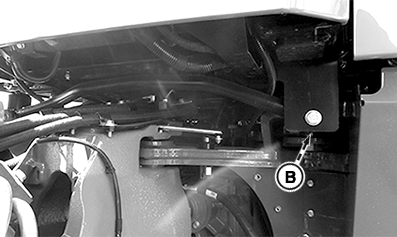

Behind and Below Cab on Right-Hand Side of Tractor

RXA0157989-UN-06MAR17

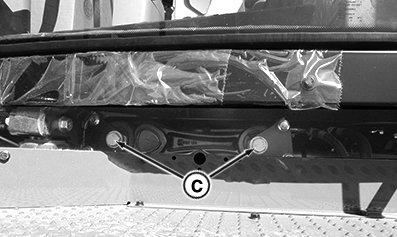

Below Cab Door on Left-Hand Side of Tractor

Check bushing assembly (A,B,C) for degraded or missing rubber. Cracked, separated, or missing paint on bushing is normal and does not indicate wear. If bushing rubber is damaged, replace bushing assembly.
