Identify Zinc-Flake Coated Fasteners

RXA0073812
RXA0073812-UN-03MAR04

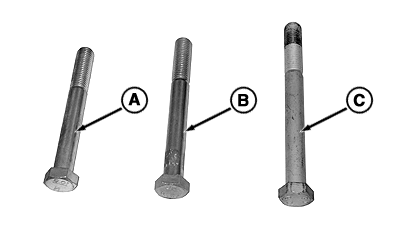

Standard cap screws (A) are of a reflective silver color.

Zinc Plated cap screws (B) are of a reflective bright silver or gold color.

Zinc-Flake Coated cap screws (C) are of a dull silver or gold color.

Zinc-Flake Coated fasteners are tightened to lubricated specifications, unless otherwise noted. See Torque Value Charts in this section of this Operator’s Manual.

RX32825,0001761-19-20170810
