Engine Serial Number
|
Serial Number |
|---|
|
*–––––––––––––––––––––––––––––––––––––––––––––––––––––* |

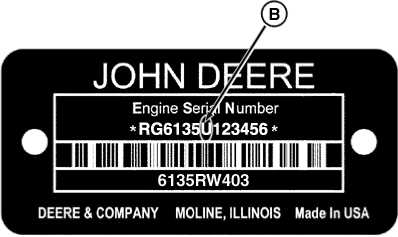

John Deere Engine Serial Plate
RXA0160356-UN-03AUG17

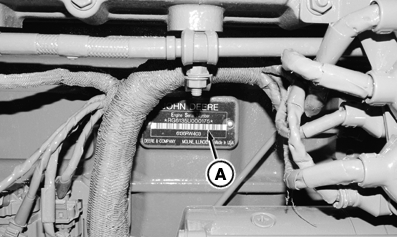

13.5 L Engine Serial Number Plate Location
Identification plate (A) is on left-hand side of engine, near the starter.
RXA0139514-UN-21FEB14
|
Emission Tier Level |
Seventh Character of Engine Serial Number |
|---|---|
|
Final Tier 4/Stage IV |
U |
Cummins® 15 L Engine Dataplate
|
Serial Number |
|---|
|
*–––––––––––––––––––––––––––––––––––––––––––––––––––––* |
RXA0160138-UN-07JUL17

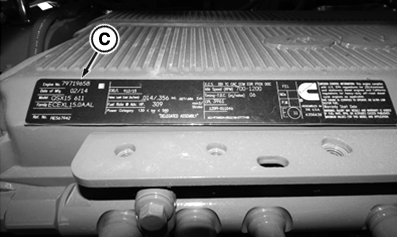

15 L Engine Serial Number Plate Location
Identification plate (C) is on left-hand side of engine valve cover.The engine dataplate, on top of the rocker lever cover, provides the model identification and other important data about the engine.
Have the following engine data available when communicating with a Cummins® Authorized Repair Location. The information on the dataplate is mandatory when sourcing service parts:
- Engine serial number (ESN)
- Control parts list (CPL)
- Model
- Indicates the Emmisions Control Systems
RXA0160139-UN-07JUL17

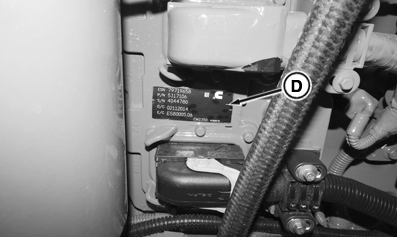

15 L Engine Control Module (ECM) Dataplate
The Engine Control Module (ECM) Dataplate (D) is on left-hand side of engine, on front of the ECM.The abbreviations on the dataplate are explained as follows:
- P/N = part number
- ESN = engine serial number
- S/N = serial number
- D/C = date code
- E/C = engine calibration
|
SV81855,000002E-19-20170803 |
