Operate Turn Signals and High/Low Beam

TS951-UN-12APR90

Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from rear, especially in turns, and use turn signal lights.

Use headlights and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible, clean, and in good working order. Replace or repair lighting and marking that has been damaged or lost. See your John Deere dealer.

When turn signal is activated, a short audible chirping sound will be heard.

Turn Signals:

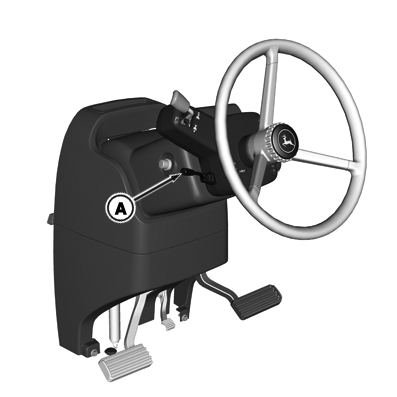

RXA0135292-UN-04SEP13

Push Turn Signal Lever (A) up for right turn, or pull down for left turn. Audible chirping sound will start. Return lever to center position after completing turn, chirping sound will stop when lever is returned to position.

High/Low Beam:

Push lever (A) forward to activate high beam headlights; high beam indicator comes on. Pull lever into center position to operate low beam. Pull lever rearward and release to momentarily activate high beams.

Dim Road Lights to low beam for oncoming vehicles.
