CommandARM™ SCV Control Levers

Tractors equipped with hitch may have up to 6 SCVs installed. Tractors without hitch may have up to 8 SCVs installed.

Reconfigurable SCV Controls allows operator to match device with various implement functions. This process is called “Assignment”input to function. See Controls Setup in CommandCenter™ section of this Operator’s Manual for more information.

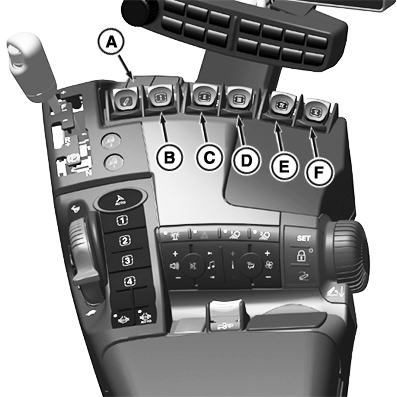

RXA0158407
RXA0158407-UN-28MAR17

A - SCV Control Lever Lock

B - SCV 1 Control Lever

C - SCV 2 Control Lever

D - SCV 3 Control Lever

E - SCV 4 Control Lever

F - SCV 5 Control Lever

SCV control lever lock (A) locks out control of SCVs by SCV control levers only.

RXA0133735
RXA0133735-UN-17JUL13

Controls Setup icon appears on SCV control levers that are reconfigurable.

CommandCenter is a trademark of Deere & Company

SV81855,00000B3-19-20170712
