Auxiliary Drive Belt—15 L Engine

1. Raise hood.

2. Keep tension off belt during removal.

   Removal and installation of fan belt requires an assistant.

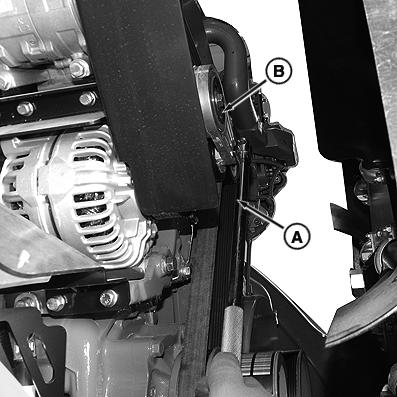

   RXA0142200-UN-12JUN14

   1/2 in Drive Socket Wrench

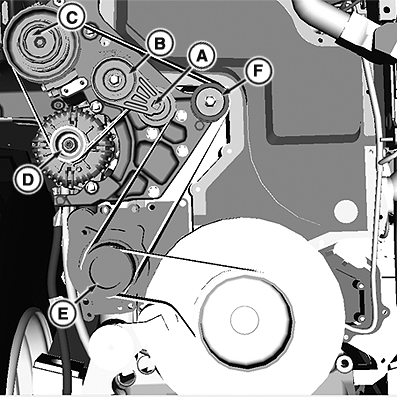

   RXA0142199-UN-06JUN14

   Auxiliary Drive Belt

   Insert 1/2 in drive socket wrench into square hole (A) on tensioner arm (B).

---




3. Push down on wrench handle to relieve tension on drive belt.

4. Have assistant remove auxiliary belt from air conditioner pulley (C).

5. Remove belt from alternator pulley (D).

6. Remove belt from water pump pulley (E) and idler (F).

7. Discard old belt.

8. Clearance between transmission auxiliary drive pulley and tractor frame is minimal. Do not damage new belt during installation.

   Install new belt to water pump pulley, alternator pulley then idler.

9. Install belt on air conditioner pulley.

10. Remove 1/2 in drive socket wrench and restore tension on new belt.

11. Close hood.

12. Removal and installation of fan belt will require an assistant.

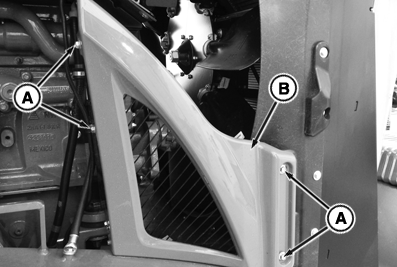

    RXA0142917-UN-23JUN14

    Remove cap screws (A) and right-hand finger guard (B).

---




13.

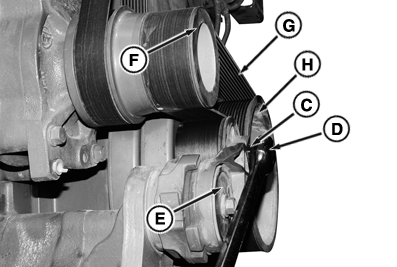

    RXA0142918-UN-23JUN14

    Insert 1/2 in drive socket wrench (D) into square hole (C) on tensioner arm (E).

---




14. Push down on wrench handle to relieve tension on water pump belt.

15. Have assistant remove water pump belt (G) from water pump pulley (F).

16. Remove belt from crankshaft (H).

17. Discard old belt.

18. Install new belt on crankshaft, then water pump pulley.

19. Restore tension on new belt and remove 1/2 in drive socket wrench.

20. Reinstall right-hand finger guard.

21. Close hood.
