Change Front HID/LED Light Assembly

  1. Raise hood.

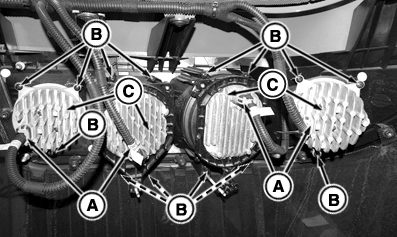

  2. RXA0158062
    RXA0158062-UN-03MAR17

    Right-Hand Side Shown

    Disconnect harness connector (A).


  3. Remove screws (B) and light assembly (C).

  4. Replace light assembly.

  5. Install new light assembly in reverse order of removal.

  6. Close and secure hood.

SV81855,00001FA-19-20170720
