Change Brake or Turn Signal Light Bulb

1.
   RXA0137101-UN-19NOV13

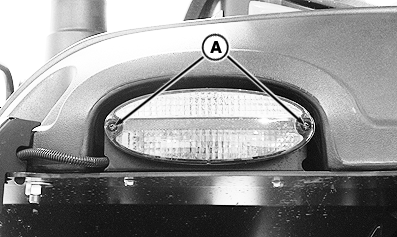

   Remove screws (A) and take out light assembly.

---




2.
   RXA0137102-UN-19NOV13

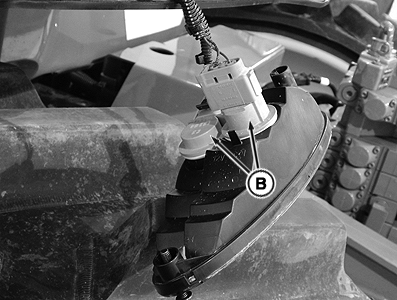

   Turn bulb (B) counterclockwise 1/4 turn and pull out to remove.

---




3. Install new bulb in fixture and turn 1/4 turn clockwise.

4. Reinstall assembly and screws.
