Outer Exhaust Screens

Reduce possibility of damage to SCR system. Keep screen unrestricted.

RXA0152654
RXA0152654-UN-05JUL16

Right-Hand Panel

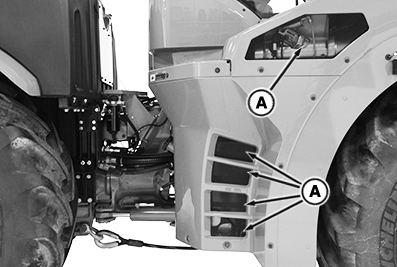

Inspect outer exhaust screens (A). Clean out debris as necessary.

SV81855,000027D-19-20170718
