Engine Air Intake System—15 L Engine

Operating engine with loose air intake clamps may allow dust entry into system and damage to engine.

Not all air intake clamps are shown, but all need to be checked and tightened.

RXA0141748
RXA0141748-UN-29MAY14

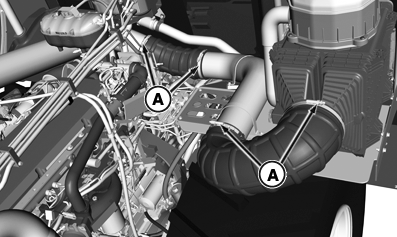

Left-Hand Side of Engine

RXA0141749
RXA0141749-UN-29MAY14

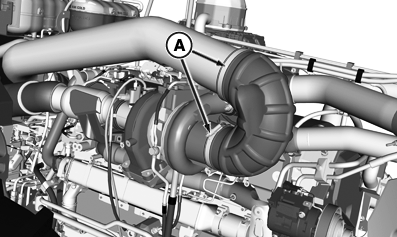

Right-Hand Side of Engine

Check air intake system for loose clamps (A) or cap screws.

Tighten air intake system clamps to specification.
Air Intake Clamps (A)Torque8 N·m (70 lb·in)

SV81855,0000285-19-20170718
