Engine Cooling System Radiator Cap—15 L Engine

1. Raise hood.

2.

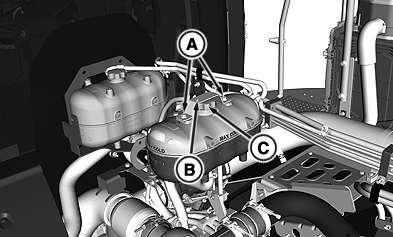

   RXA0143144-UN-02JUL14

   Remove cap screws (A) and bracket (B) from over cap.

---




3. Remove radiator pressure cap (C)

4. Replace with new radiator pressure cap.

5. Reinstall bracket and tighten cap screws to specification.

   Radiator Pressure Cap Bracket Cap Screws	Torque	20 N·m (15 lb·ft)

6. Close hood.
