Engine Coolant—13.5 L Engine

READ ENTIRE PROCEDURE BEFORE BEGINNING. Special tools and other products are needed to complete procedure.

Thermostat, thermostat gasket, and de-aeration tank cap should be replaced whenever system is flushed.

INITIAL change interval is 6 years or 6000 hours, provided cooling system is topped off using only John Deere Cool-Gard II™ and premix and coolant is tested at recommended intervals. After initial service, the SCHEDULED interval (2 years or 2000 hours) can be extended up to 6 years or 6000 hours depending on coolant used and if coolant is tested at recommended intervals. Follow recommendations in ”Drain Intervals for Diesel Engine Coolant” in Fuels, Lubricants and Coolant section of this manual.

When service is performed on cooling system, make sure to check coolant daily for the next three days of operation. The most effective way to check coolant level is when tractor engine is cool. If coolant is low, fill de-aeration tank to mark on tank.

TS281
TS281-UN-15APR13

Explosive release of fluids from pressurized cooling system can cause serious burns.

Shut off engine. Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

Park tractor, turn key switch to OFF and allow radiator to cool.
Throughout the draining, flushing and filling procedure, turn temperature knob to highest setting (B) and leave set to the highest setting to ensure that fluids are drained from heating/Air conditioning unit. If either temperature knob is not set to highest setting or key switch is not turned to RUN, system will not completely drain.
See your John Deere dealer for recommendations on cleaning solutions.

RXA0141883-UN-04JUN14

RXA0158422-UN-28MAR17

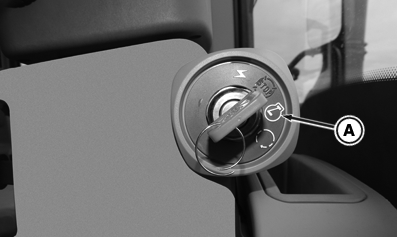

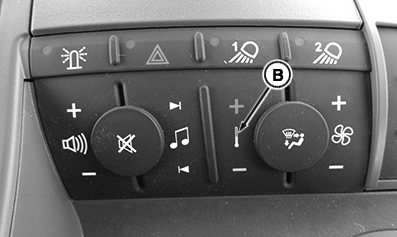

Turn key to RUN (A), then turn temperature knob (B) to highest setting.

RXA0141887-UN-09JUN14

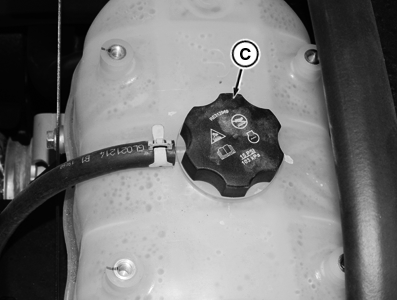

Open hood and remove de-aeration tank cap (C).

TS281-UN-15APR13
Explosive release of fluids from pressurized cooling system can cause serious burns.
Shut off engine. Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

RXA0161216-UN-26OCT17

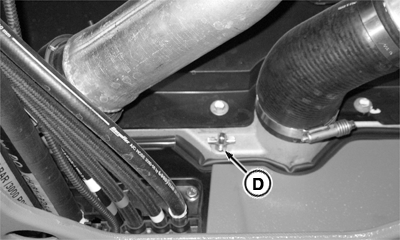

Place catch pan under radiator drain valve (D).

Open radiator drain valve and drain coolant into catch pan.
Place catch pan under engine drain valve.
RXA0161217-UN-26OCT17

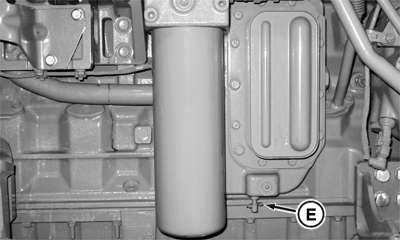

Open engine drain valve (E) and drain coolant into catch pan.

Allow radiator and engine to drain.
RXA0161218-UN-26OCT17

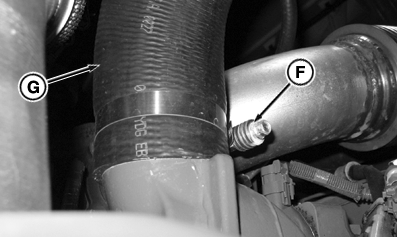

Loosen hose clamp (F) and slide hose (G) off of thermostat housing.

RXA0161219-UN-26OCT17

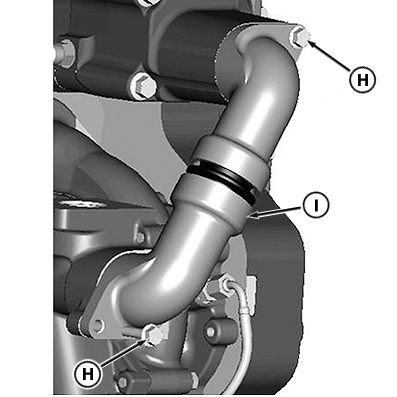

Remove cap screws (H) and remove coolant by-pass tube assembly (I).

Coolant by-pass tube assembly does not need to be taken apart.

RXA0161220-UN-26OCT17

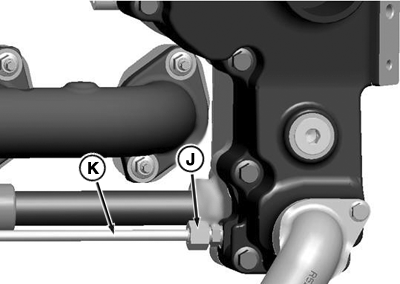

Remove coolant return line (K) by removing fitting on thermostat housing (J) and rear top liner cooling fitting with O-ring.

RXA0161221-UN-26OCT17

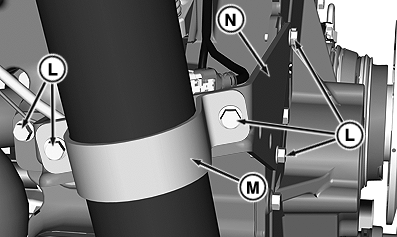

Remove cap screws (L), bracket (M), and brace (N).

RXA0161222-UN-26OCT17
Remove cap screw (P).

Handle pressure line with caution. Line is easily damaged and can cause engine problems.

RXA0161223-UN-27OCT17

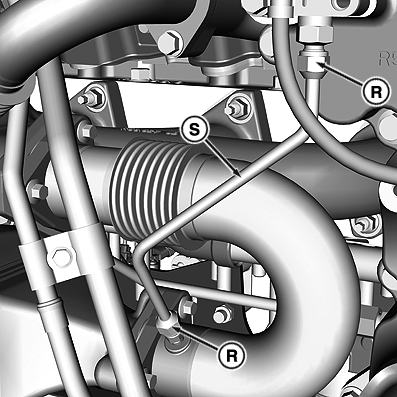

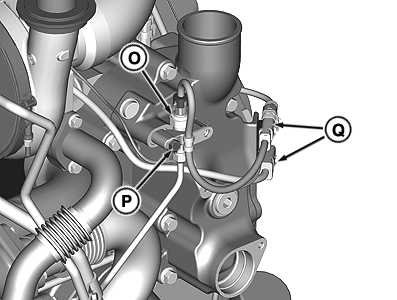

Loosen fittings (R) and rotate hard line (S) enough to remove housing.

Remove pressure sensor (O) and electrical hardware (Q).
RXA0161224-UN-26OCT17

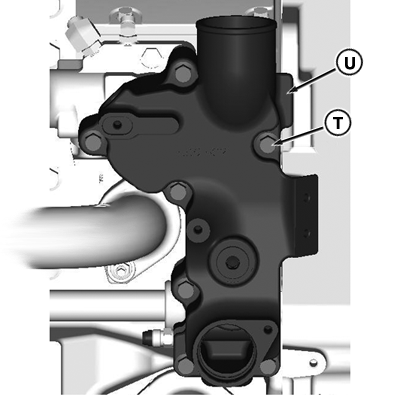

Remove six 85 mm cap screws, one 100 mm cap screw (T), and thermostat housing (U).

Remove old thermostats and clean sealing area.
During draining, filling, and flushing, coolant system will not have thermostat installed.

RXA0161225-UN-26OCT17

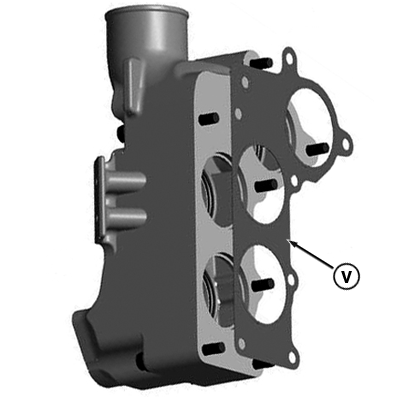

Replace gasket (V) and housing.

Replace previously removed coolant return line assembly, coolant by-pass hose assembly, hard line, electrical hardware, bracket, brace, cap screws, radiator hose and clamp.
Close engine drain valve, and radiator drain valve.
Dispose of old coolant in accordance with local laws and ordinances.
Never pour cold water or coolant into hot engine.

See your John Deere dealer for recommendations on cleaning solutions.

Fill high pressure coolant system at de-aeration tank with cooling system cleaning solution.
Install de-aeration cap and close hood.
Make sure hood is closed before starting engine.

Start engine and run at a minimum of 1500 rpm for 15 minutes.
Shut off engine and allow cleaning solution to cool.
Make sure temperature knob is turned to highest setting, then turn key switch to Run position.
TS281-UN-15APR13
Explosive release of fluids from pressurized cooling system can cause serious burns.
Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

Open hood, remove de-aeration cap, put drain pans in place, then open radiator and engine drain valves.

Allow cooling system to completely drain.
Close engine drain valve, and radiator drain valve.
Dispose of cleaning solution in accordance with local laws and ordinances.
Fill high pressure coolant system at de-aeration tank with clean water.
Never pour cold water or coolant into hot engine.

Install de-aeration cap and close hood.
Make sure hood is closed before starting engine.

Start engine and run at a minimum of 1500 rpm for 15 minutes.
Shut off engine and allow water to cool.
Make sure temperature knob is turned to highest setting. then turn key to Run.
TS281-UN-15APR13
Explosive release of fluids from pressurized cooling system can cause serious burns.
Only remove cap when cool enough to touch with bare hands. Slowly loosen cap to first stop to relieve pressure before removing completely.

Open hood, remove de-aeration cap, put drain pans in place, then open radiator and engine drain valves.

Allow radiator to drain.
RXA0161226-UN-26OCT17
Remove radiator hose and clamp, bracket, brace, cap screws, electrical hardware, coolant return assembly, coolant bypass assembly, thermostat housing (X) and gasket.

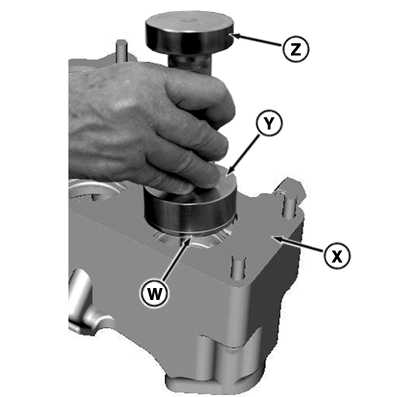

Install lip seals (W) using handle JDG8092 (Z) and seal installer JDG11202 (Y).
Apply light coat of RTV silicone sealant to new gasket.
RXA0161227-UN-26OCT17

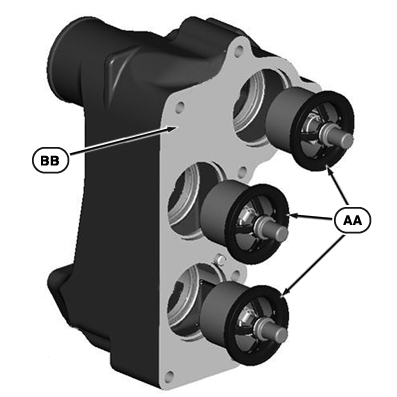

Install new thermostats (AA), new gasket (BB) and reinstall housing.

RXA0161228-UN-26OCT17

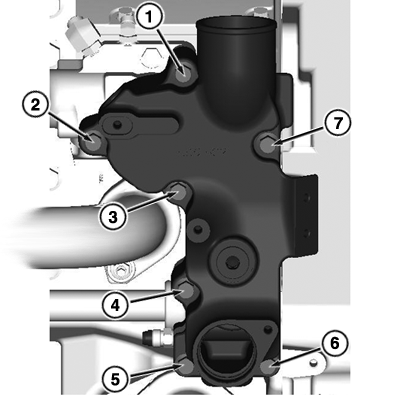

Tighten cap screws to specifications in order from 1 to 7.

Thermostat Housing Cap Screws Torque 50 N·m (39 lb·ft)

RXA0161229-UN-26OCT17

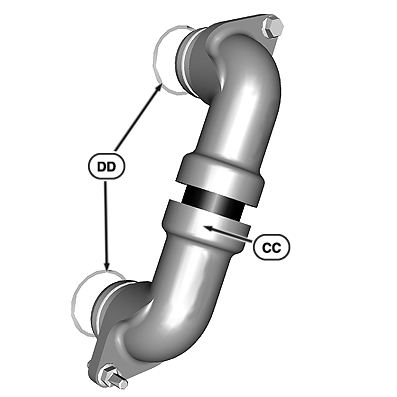

Replace previously removed by-pass tube assembly (CC) and new O-rings (DD) according specifications.

Coolant Bypass Cap Screws Torque 37 N·m (27 lb·ft)

When installing rear top liner cooling fitting, apply Loctite® 242 thread locker to fitting threads and tighten fitting to specification. Apply AR54749 soap solution to O-ring when installing return line to thermostat housing.

RXA0161230-UN-26OCT17

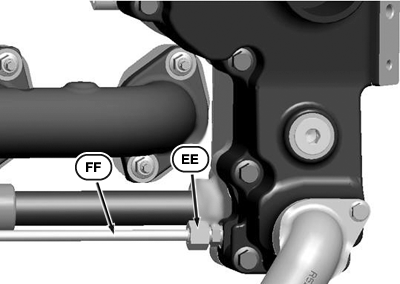

Replace previously removed return line (FF) with fitting (EE) and rear top liner cooling fitting with O-ring.

Rear Top Liner Cooling Fitting Cap Screws Torque 13.5 N·m (10 lb·ft)

Replace hard line and tighten fittings to specification.

Fittings Torque 19 N·m (14 lb·ft)
Replace cap screw and electrical hardware.

Housing Cap Screw Torque 20 N·m (14 lb·ft)
Replace bracket and brace, tight cap screws to specification.

Cap Screws Torque 30 N·m (22 lb·ft)
Replace previously removed hose and clamp.
Close engine drain valve and radiator drain valve.
Dispose of drain clean water in accordance with local laws and ordinances.
Fill high pressure coolant system at de-aeration tank with new coolant solution. For cooling system capacity, see Capacities in Specifications section of this Operator’s Manual.
Make sure hood is closed before starting engine.

Never pour cold water or coolant into hot engine.

Coolant may seep out of the de-aeration tank overflow vent as air is purged from the coolant system.
Level may change when tractor is running or during the next few cycles.

It is highly recommended the cooling system is checked for leaks after draining, flushing and refilling to ensure tractor performance. Consult your John Deere Dealer for procedure and appropriate tools.

Install de-aeration cap, close hood, start engine, and run for a minimum of 1500 rpm for 15 minutes.
