Engine Cooling System—15 L Engine

Turn engine OFF.

RXA0148250
RXA0148250-UN-29MAY15

Clean grille screen (A) using a brush or compressed air.

Clean trash from engine compartment shields.

Release hood latch and raise hood.

RXA0161240
RXA0161240-UN-01NOV17

RXA0161241
RXA0161241-UN-01NOV17

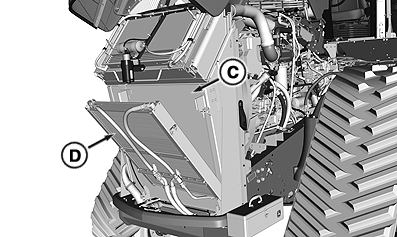

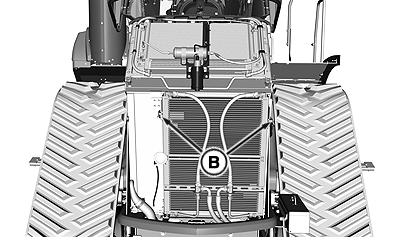

Release oil cooler (D) retaining pins (B) to lower oil cooler forward carefully for easier cleaning access.

Use compressed air to clean oil cooler and radiator (C).

RXA0161242
RXA0161242-UN-01NOV17

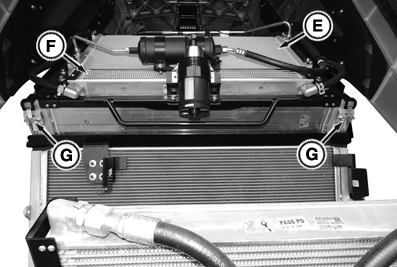

Release Air Conditioning retaining pins (G) and lift air conditioning condenser (E) and fuel cooler (F) up for easier cleaning access.

Use compressed air to clean air conditioning condenser and fuel cooler.

RXA0161243
RXA0161243-UN-01NOV17

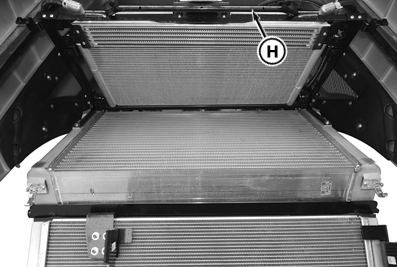

Close air conditioning condenser and oil-fuel cooler using handle (H). Pull air conditioning condenser and fuel cooler out to unlock and lower carefully. Lock retaining pins.

Lift oil cooler up and lock retaining pins.

Gently lower hood and firmly close until hood latch is locked.
