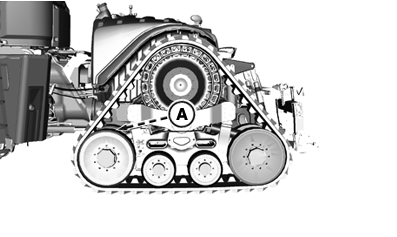

Track Tension Cylinder

RXA0147245-UN-11FEB15

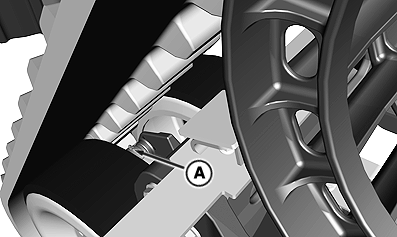

Tension Cylinder Fittings

RXA0147246-UN-13FEB15

Lower Tension Cylinder Fitting

Apply several shots of grease to tension cylinder grease fittings (A) at each end of cylinder.

Use John Deere HD Grease. See Grease in Other Lubricants section of this Operator’s Manual.
