Access DEF Dosing Unit Filter—Final Tier 4 or Stage IV Engine

  1. Replace every 4500 hours of operation or every 3 years, whichever comes first.

    RXA0147248
    RXA0147248-UN-13FEB15

    Remove cap screws (A) and panel (B).


  2. RXA0161214
    RXA0161214-UN-26OCT17

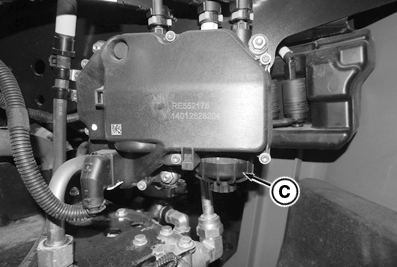

    Replace DEF dosing unit filter (C), located on bottom of dosing unit. See DEF Dosing Unit Filter in this Operator’s Manual section.


  3. Install shield. Tighten cap screws to specification.
    Shield Cap ScrewsTorque73 N·m (54 lb·ft)

SV81855,000036D-19-20171026
