Access Master Fuses

Replacement fuse must be same rating as original.

See your John Deere™ dealer for replacement fuses.

Do not attempt to disassemble master fuse unless instructed by your John Deere™ dealer.

Insure both negative (—) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.

Tractors have three master fuses.

1.
   RXA0142334-UN-10JUN14

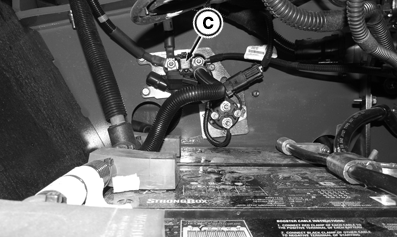

   Master Fuse without ACS

   Disconnect battery ground (-) cable.

   Master fuse (C) is located within battery panel of tractor. Master fuse is connected across both posts of junction box.

---




2. Remove cap screws (A) and open panel (B) to expose master fuses.


   RXA0147248-UN-13FEB15

---

The master fuses are:

•
  RXA0142038-UN-04JUN14

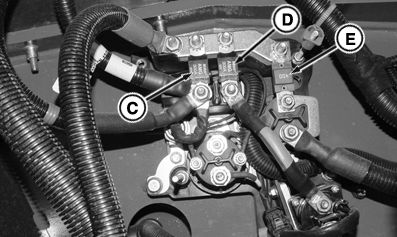

  Master Fuse with ACS

  Master Fuse-300 Amps (C)

---

• Alternator Battery Fuse-300 Amps (D)
• Backup Hydraulic Pump Fuse - 400 Amps (E)
