Transmission-Hydraulic Oil and Filters

Prevent premature axle failure. Carefully follow drain and fill procedure.

Recalibrate transmission only if transmission shift characteristics change after transmission oil and filter change. See Transmission Calibration in Service - General Information section of this Operator’s Manual.

Maximum transmission/hydraulic oil reservoir/axles volume is 265.5 L (71.0 gal), depending on option configuration. Select appropriately sized containers for draining oil.

  1. Park tractor on level ground, place transmission in PARK and shut engine off. Allow oil to cool for few minutes.

  2. RXA0141856
    RXA0141856-UN-02JUN14

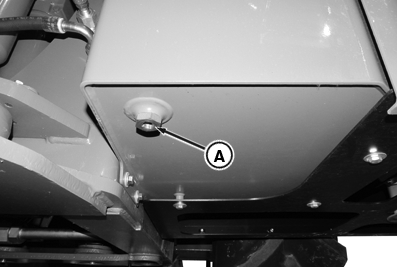

    Remove hydraulic reservoir drain plug (A) in gudgeon area and direct oil into a catch oil container.


  3. RXA0150421
    RXA0150421-UN-11NOV15

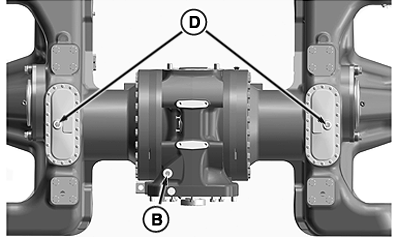

    Remove axle plug (B) to drain oil.


  4. RXA0142109
    RXA0142109-UN-06JUN14

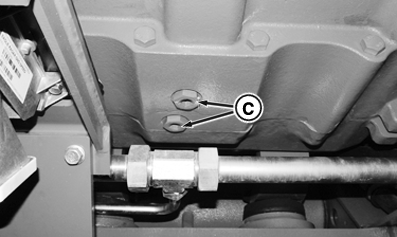

    Remove two transmission plugs (C) to drain oil.


  5. Remove final drive drain plugs (D) to drain oil

  6. RXA0161062
    RXA0161062-UN-16OCT17

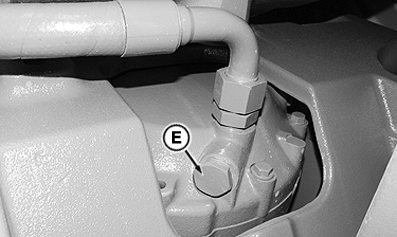

    If PTO equipped, remove dropbox plug (E).


  7. Reinstall reservoir drain plug.

  8. Reinstall transmission drain plug.
    Transmission Drain PlugTorque70 N·m (52 lb·ft)

  9. Reinstall all removed front and rear axle drain plugs.
    Front and Rear Axle Drain PlugsTorque70 N·m (52 lb·ft)

  10. If equipped, reinstall PTO dropbox drain plug.
    PTO Dropbox Drain PlugTorque70 N·m (52 lb·ft)

  11. Some parts in illustration have been removed to better show transmission suction screen.

    RXA0161063
    RXA0161063-UN-16OCT17

    Transmission-Rear View

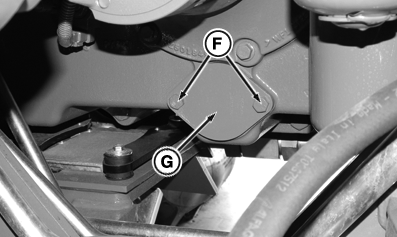

    Remove suction screen cover cap screws (F) and remove cover (G) from rear of transmission.


  12. RXA0161064
    RXA0161064-UN-16OCT17

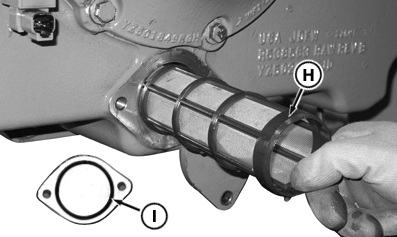

    Remove suction screen (H) and clean with a solvent.


  13. Remove and discard O-ring (I) on suction screen cover.

  14. Inspect for debris in suction screen cavity using a flashlight or magnet.

  15. Install new O-ring on cover.

  16. Reinstall suction screen and cover. Tighten cap screws to specification.
    Suction Screen Cover Cap ScrewsTorque55 N·m (40 lb·ft)

  17. RXA0161268
    RXA0161268-UN-03NOV17

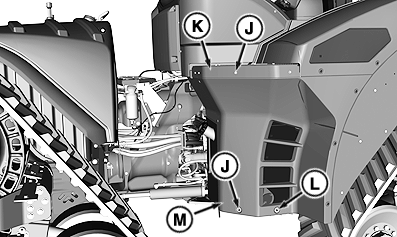

    Remove platform cap screws (J) and remove platform step (K).


  18. Remove panel cap screws (L) and remove lower shield panel (M).

  19. RXA0161066
    RXA0161066-UN-16OCT17

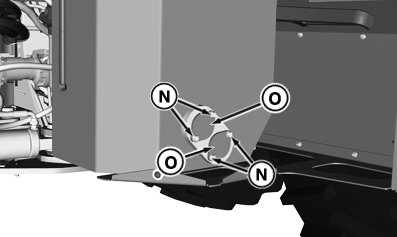

    Remove screen cover cap screws (N) and both screen covers (O).


  20. RXA0161067
    RXA0161067-UN-16OCT17

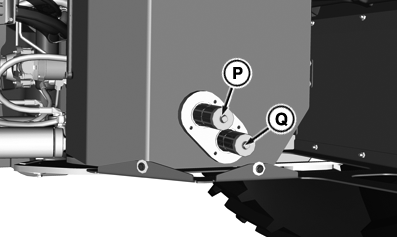

    Remove axle lube suction screen (P) and clean with a solvent.


  21. Remove charge pump suction screen (Q) and clean with a solvent.

  22. Reinstall suction screens and covers. Tighten screws to specification.
    Platform Cap ScrewsTorque73 N·m (53.8 lb·ft)

  23. Reinstall lower panel and tighten cap screws to specification.
    Panel Cap ScrewsTorque37 N·m (27.3 lb·ft)

  24. Reinstall platform and tighten cap screws to specification.
    Screen Cover Cap ScrewsTorque79 N·m (58.3 lb·ft)

  25. Approximately 1.9 L (2qts) of oil will be lost when changing filter. Size drain pan accordingly.

    RXA0161068
    RXA0161068-UN-16OCT17

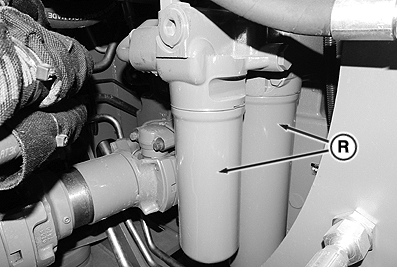

    Remove transmission oil filters (R), at right-hand rear of transmission.


  26. Lubricate new filter O-rings with hydraulic oil and install filters. Tighten one-half turn after O-rings contact filter housing base.

  27. Replace hydraulic oil or axle oil filters every 1500 hours or when indicator lamp illuminates.

    RXA0161070
    RXA0161070-UN-16OCT17

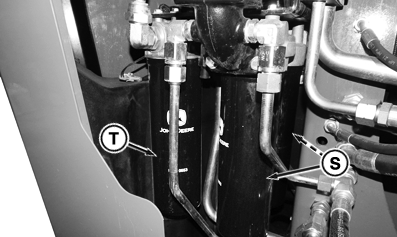

    Remove hydraulic oil filters (S), on left-hand side of gudgeon.


  28. Replace axle oil filter (T), located next to hydraulic oil filters (S).

  29. Lubricate hydraulic oil and double reduction axle oil filter O-rings with hydraulic oil and install on tractor. Tighten one half turn after O-ring contacts filter housing base.

  30. Hydraulic oil reservoir does not hold all system hydraulic oil . Transmission and front and rear axles also hold additional system oil.

    If possible, check oil level prior to first start of day. Ambient temperature should be 7° C. (45° F) or above. Oil level in the reservoir will fluctuate depending upon the volume of oil exchanged with an attached implement.

    For applications or implements requiring high volumes of oil transfer (for example - large air seeders or pulling 3 scrapers), hydraulic reservoir can be filled up to High Volume Takeout Oil Mark 58.5 L (15.4 gal) above MIN COLD.

    RXA0161071
    RXA0161071-UN-16OCT17

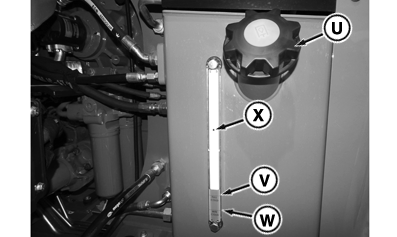

    Remove hydraulic oil reservoir fill cap (U) and add hydraulic oil to the reservoir.

    Transmission-Hydraulic Oil System Capacities (with Filters)



    Hydraulic Reservoir Volume Reference Mark:

    .. Full Cold Mark (V).............. 92.7 L (24.5 gal)

    .. Min Cold Mark (W).............. 81.4 L (21.5 gal)

    .. High Volume Takeout Oil Mark (X).............. 140.0 L (37.0 gal)

    .. Oil Volume Between ”Min Cold” and “Full Cold” Marks.............. 11.4 L (3 gal)


    Transmission Fill Volume:

    .. Transmission .............. 37.9 L (10.0 gal)


    Transmission/Hydraulic Reservoir/Axles Fill Volume1:

    .. Without 3-point rear hitch and PTO 220 L (58.0 gal)

    .. With 3-point rear hitch and PTO 227 L (60.0 gal)

    See Specifications Section for Additional Specifications


  31. Reinstall and tighten hydraulic reservoir fill cap.

  32. Fill transmission with prescribed quantity of oil to ensure lubrication of transmission lube pump at startup.

    RXA0161072
    RXA0161072-UN-16OCT17

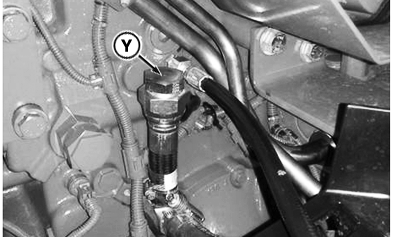

    Prefill transmission with 37.9 L (10.0 gal) of transmission-hydraulic oil at fill tube (Y). See Transmission and Hydraulic Oil in Other Lubricants section of this Operator’s Manual.


  33. Do not depress brake pedal during this step. If brake pedal is depressed, additional oil flows to axles and result in an inaccurate oil level check.

    Place transmission in PARK.

    1. Start Engine

    2. Run engine at 1200 rpm for 5 minutes.

  34. Shut engine OFF and wait 5 minutes for oil level to stabilize.

  35. Confirm that oil level will not fall too low if tractor is to be used with implements with large hydraulic cylinders that remove large volumes of oil from the hydraulic system. Place implement in position that requires maximum amount of oil. Oil level should be near High Volume Takeout Oil Mark position on sight gauge.

    Check to ensure transmission-hydraulic reservoir oil level is visible between Min Cold and Full Cold marks in the sight gauge. If oil level is visible between Min Cold and Full Cold, tractor can be used for normal operation. Oil level in reservoir will rise as temperature increases. Replace the transmission-hydraulic oil reservoir vent filter. See Transmission-Hydraulic Vent Filter in this Operator’s Manual section.

  36. Volume capacity between Min Cold mark and Full Cold mark is 11.4 L (3 gal).

    If oil level is below Min Cold is sight gauge, add oil through reservoir cap.

  37. Excess hydraulic oil can result in decreased engine power and decrease fuel economy.

    If oil level is above Full Cold mark, remove enough oil to bring it down to Full Cold mark level.

    Remove drain plug under hydraulic oil reservoir and direct oil into a container.

1 System volume based on axle and hydraulic configuration.
