Mid-Rollers Oil Level
RXA0147253-UN-13FEB15

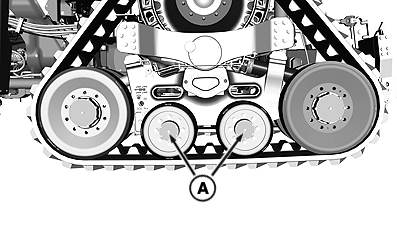

Remove plug (A) on each mid-roller. Oil should be level with plug opening.
Fill with John Deere™ Hy-Gard™ oil as required. See Transmission and Hydraulic Oil in Other Lubricants section of this Operator’s Manual.
|
John Deere is a trademark of Deere & Company Hy-Gard is a trademark of Deere & Company |
SV81855,0000371-19-20170816 |
