Idler Wheel Hub Oil Level
RXA0147254-UN-12FEB15

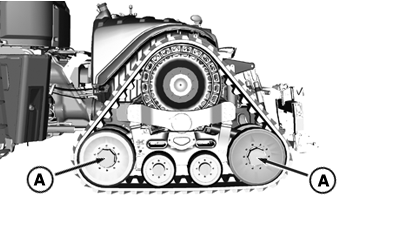

Remove oil fill plug (A) on each idler wheel. Oil should be level with plug opening.
| Oil Fill Plug | Torque | 34 N·m (24 lb·ft) |
Fill with John Deere™ Hy-Gard™ oil as required. See Transmission and Hydraulic Oil in Other Lubricants section of this Operator’s Manual.
|
John Deere is a trademark of Deere & Company Hy-Gard is a trademark of Deere & Company |
SV81855,0000372-19-20170816 |
