Adjust Front Grille Lights

To adjust front grille lights:

For Low Beam Headlights:

1.

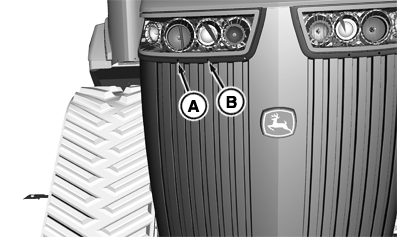

   RXA0147256-UN-12FEB15

   To lower low beam aim, turn low beam adjustment screw (A) clockwise.

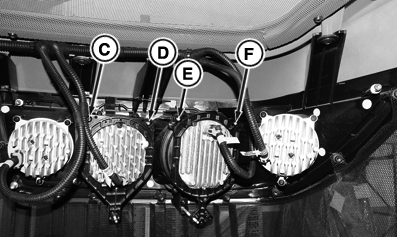

   RXA0142138-UN-05JUN14

   To raise and tilt out low beam headlights, turn low beam adjustment screw (E) clockwise.

   To raise and tilt in low beam headlights, turn low beam adjustment screw (F) clockwise.

   For High Beam Headlights:

---




2. To lower high beam aim, turn high beam adjustment screw (B) clockwise.

   To raise and tilt out high beam, turn high beam adjustment screw (C) clockwise.

   To raise and tilt in high beam, turn high beam adjustment screw (D) clockwise.

3. Repeat for opposite side of tractor.
