Undercarriage Articulation Bumper Stops

Inspect articulation bumper stop:

1. Park tractor on level surface to inspect bumpers.

2.

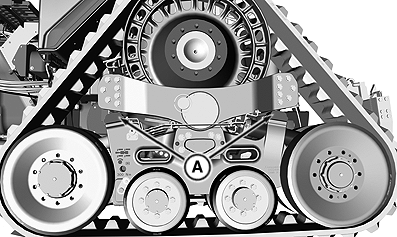

   RXA0147610-UN-12MAR15

   Inspect each articulation bumper stop (A) for damage, excessive wear, or if it is bent of deformed.

---




3. Damage may be chunking, chipping, or cracking of bumper. If any damage is found, replace bumper.

Replace articulation bumper stop:

1.

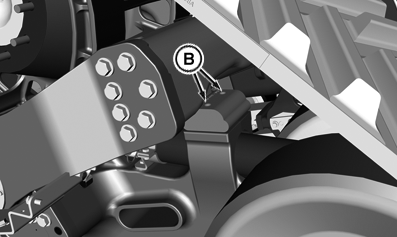

   RXA0147611-UN-12MAR15

   Remove cap screws (B).

---




2. Install new bumper stop.

   Articulation Bumper Stop Cap Screws	Torque	10 N·m (7 lb·ft)

3. Tighten cap screws.
