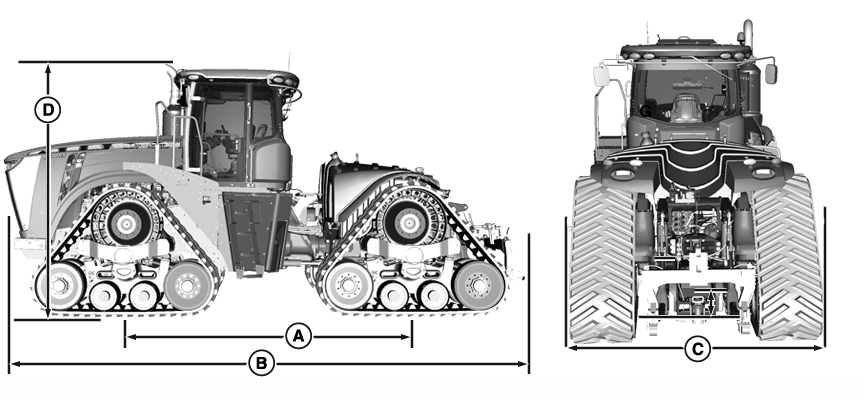

Overall Dimensions
RXA0160705-UN-23AUG17
|
9420RX |
9470RX |
9520RX |
9570RX |
9620RX |
|
|---|---|---|---|---|---|
|
LENGTH (mm (in)) |
|||||
|
Wheelbase (A) |
4128 (162.5) |
||||
|
Overall Length (including hitch and coupler) (B) |
8180 (322.0) |
||||
|
OVERALL WIDTH (C) (mm (in)) |
|||||
|
Belt Width - 457.2 mm (18 in) |
Standard |
Optional |
— |
||
|
Track Spacing |
|||||
|
2032 mm (80 in): 2487 mm (97.9 in) |
Standard |
Optional |
— |
||
|
2235 mm (88 in): 2690 mm (105.9 in) |
Optional |
— |
|||
|
3048 mm (120 in): 3503 mm (137.9 in) |
Optional |
— |
|||
|
Belt Width - 609.6 mm (24 in) |
Optional |
— |
|||
|
Track Spacing |
|||||
|
2032 mm (80 in): 2640 (103.9) |
Optional |
— |
|||
|
2235 mm (88 in): 2843 (111.9) |
Optional |
— |
|||
|
3048 mm (120 in): 3656 (143.9) |
Optional |
— |
|||
|
Belt Width - 762 mm (30 in): 2977 (117.2) |
— |
Standard |
|||
|
Belt Width - 914 mm (36 in): 3129 (123.2) |
— |
Optional |
|||
|
OVERALL HEIGHT (D) (mm (in)) |
|||||
|
Top of Roof |
3707 (145.9 in) |
||||
|
Top of Beacon |
3919 (154.3 in) |
||||
|
Top of Exhaust |
|||||
|
13.5L |
3696 (145.5 in) |
||||
|
15L |
4006 (157.7 in) |
||||
|
TURNING RADIUS (m (ft)) |
|||||
|
30-in and 36-in Track |
6.4 (21.0) |
||||
|
GROUND CLEARANCE (mm (in)) |
|||||
|
Ground to bottom of drawbar |
402 (15.8) |
||||
|
Ground to drawbar support casting |
336 (13.2) |
||||
|
Ground to bolt |
312 (12.3) |
||||
|
Estimated Shipping Weight1 |
23587 kg (52000 lb) |
23587 kg (52000 lb)2; 24494 kg (54000 lb)3 |
24948 kg (55500 lb) |
||
|
Maximum Ballast Level |
28122 kg (62000 lb) |
||||
|
1 Tractor equipped
with standard tracks, without PTO, and without 3-point hitch.
|
SV81855,00003AD-19-20171101 |
