Drawbar Support and Cap Screws
RXA0150415-UN-05NOV15

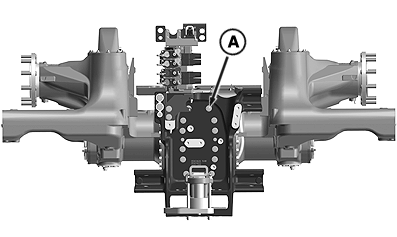

Heavy-Duty Double Reduction Axle Drawbar Support
Inspect and tighten drawbar support cap screws (A) and stabilizer cap screws.
|
Drawbar Support Cap Screw Torque Specifications |
|
|---|---|
|
Drawbar Support Cap Screws to Frame (A) |
490 N·m (361 lb·ft) |
|
SV81855,00003FB-19-20170123 |
