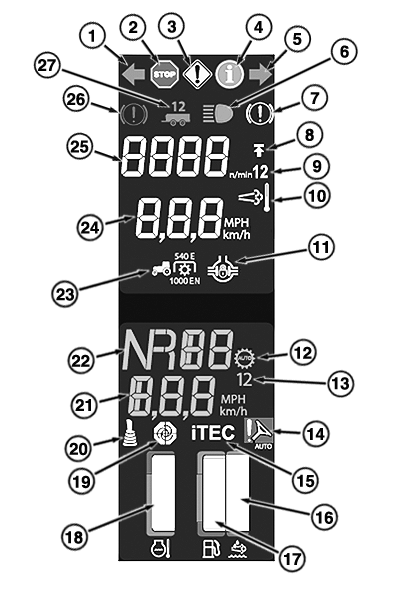

Corner Post Display

RXA0153153-UN-04AUG16

Corner Post Display

1 - Left Turn Indicator

2 - Stop Indicator

3 - Service Alert Indicator

4 - Information Indicator

5 - Right Turn Indicator

6 - High Beam Indicator

7 - Brake Warning Indicator (Yellow)

8 - Maximum Set Speed Indicator

9 - Maximum Set Speed Selection (1 or 2)

10 - Exhaust Filter Cleaning Indicator

11 - Differential Lock Indicator

12 - Efficiency Manager Indicator

13 - Efficiency Manager Set Speed Indicator

14 - AutoTrac™ Indicator

15 - iTEC™ Indicator

16 - Diesel Exhaust Fluid (DEF) Gauge (FT4/Stage IV Engines Only)

17 - Fuel Gauge

18 - Coolant Temperature Gauge

19 - Tractor Automation Indicator

20 - ISOBUS Auxillary Mode Indicator

21 - Set Speed

22 - Current Gear/Range

23 - PTO Indicator (If Equipped)

24 - Vehicle Ground Speed

25 - Tachometer

26 - Brake Warning Indicator (Red)

27 - Trailer Indicator (If Equipped)
