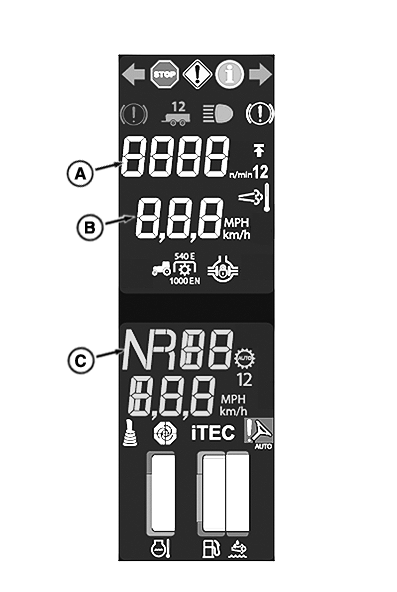

Digital Indicators—Tachometer, Ground Speed and Transmission

RXA0153154-UN-04AUG16

B—Ground Speed Indicator: Displays ground speed in either miles-per-hour or kilometers-per-hour, depending on operator selected units (U.S. or Metric).

If ”- - -” is displayed, no speed signal is being received.

C—Transmission Information: Shows if transmission is in Neutral—N, Forward—F, Reverse—R or Park—P.

If ”- - -” is displayed, no gear signal is being received.

Efficiency Manager™: Shows set speeds 1 or 2.

PST Only: Shows gear selected.
