Operate Front Windshield Wiper and Washer

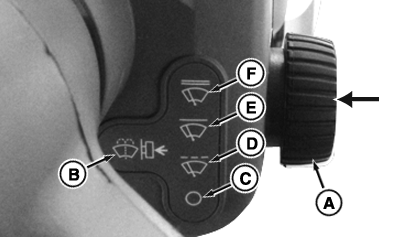

RXA0142299
RXA0142299-UN-09JUN14

A - Windshield Wiper/Washer Knob

B - Washer Icon

C - Off

D - Intermittent Speed

E - Slow Speed

F - Fast Speed

Wiper/washer knob (A) has four positions:

  • OFF
  • Intermittent Operation
  • Slow Speed
  • Fast Speed

Push knob in to operate front windshield washer.

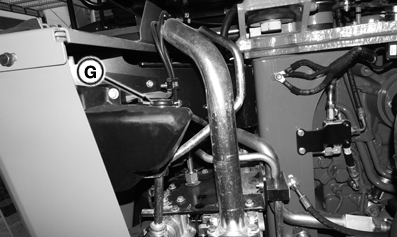

RXA0142303
RXA0142303-UN-09JUN14

Windshield washer reservoir (G) is on left-hand side of the gudgeon, above the hydraulic filters.

Fill reservoir with non-freezing windshield washer fluid.

TO84419,000009A-19-20170827
