Implement Connector Use

RXA0073943
RXA0073943-UN-12MAR04

RXA0073947
RXA0073947-UN-12MAR04

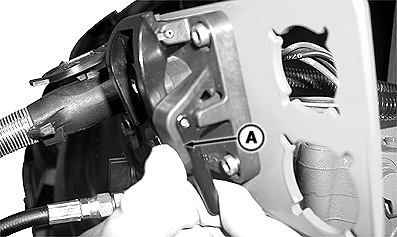

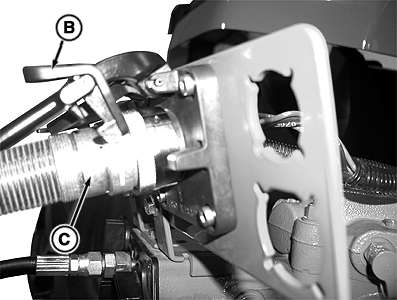

Push release lever (A), open connector and insert implement connector (C). Connector latch (B) will be in raised position.

RXA0073945
RXA0073945-UN-12MAR04

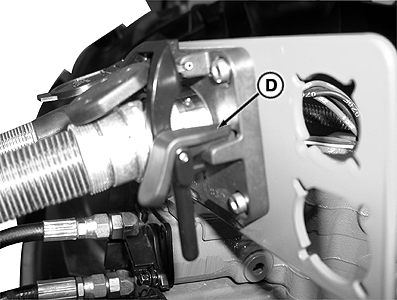

Lower latch until lever (D) is in latched position. This will prevent implement harness from being pulled out of connector.
