Foot Decelerator

Engine must be running to operate foot decelerator.

Use foot decelerator, to slow down engine rpm, when turning at end of field.

When using Efficiency Manager™ and depressing foot decelerator, transmission downshifts to startup gear may occur in order to reduce wheel speed. To reduce number of shifts (see Set Start Gears in e18™ Powershift Transmission section of this Operator’s Manual).

Adjust Engine RPM Decelerator Percentage:

  1. RXA0133711
    RXA0133711-UN-16JUL13

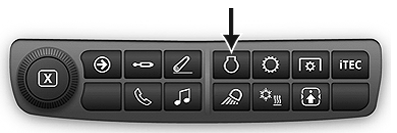

    Press Engine Shortcut Button on Navigation Bar.


  2. RXA0153796
    RXA0153796-UN-02SEP16

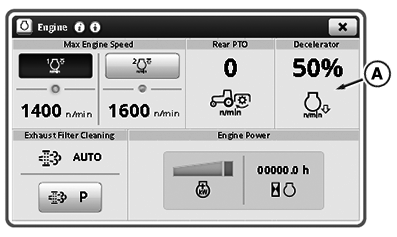

    Select decelerator percentage module (A) to adjust maximum engine (throttle) rpm. Decelerator percentage can be adjusted from 50 to 95 percent.


  3. RXA0160127
    RXA0160127-UN-06JUL17

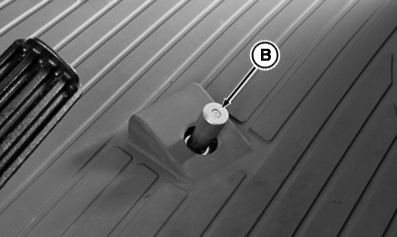

    Push foot decelerator (B) to lower engine rpm. Speed resumes when foot decelerator is released.


e18 is a trademark of Deere & Company

TO84419,00000C0-19-20170927
