Backup Alarm

Backup alarm emits an audible sound to alert anyone near by. Tractor will be traveling in a reverse direction.

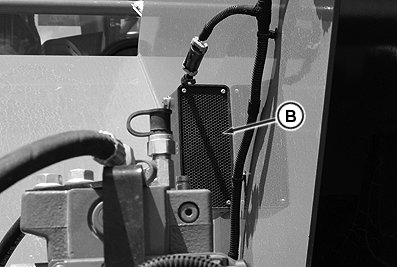

RXA0141854
RXA0141854-UN-02JUN14

Backup alarm (B) is located on rear cross member.

RXA0158409
RXA0158409-UN-28MAR17

Backup alarm will sound when key switch is ON and transmission shift lever (A) is in reverse gear.

Alarm can be set at three different volume levels:

  • High
  • Low
  • Medium

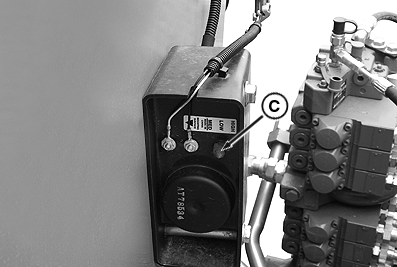

RXA0141855
RXA0141855-UN-02JUN14

Volume Control (Rear View)

Turn volume control knob (C), on back of alarm, to desired setting.


Turn Backup Alarm ON/OFF

Use Transmission Advanced Settings to turn Backup Alarm ON or OFF.

To access the Transmission Advanced Settings page:

  1. RXA0133712
    RXA0133712-UN-16JUL13

    Press Transmission Shortcut Button on Navigation Bar.

  2. RXA0130326
    RXA0130326-UN-11JAN13

    Select Advanced Settings icon.
  3. Select Settings tab.

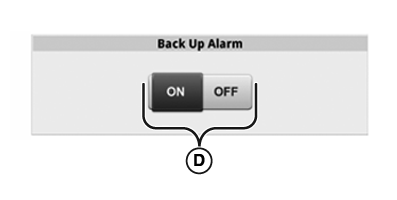

  4. RXA0160203
    RXA0160203-UN-12JUL17

    Use Backup Alarm toggle (D) to turn backup alarm ON or OFF.

TO84419,00000CC-19-20170712
