Install Clevis Assembly — Category 4 Drawbar

Avoid equipment damage: correctly attach clevis assembly.

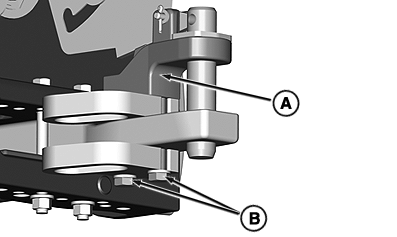

  1. RXA0141898
    RXA0141898-UN-05JUN14

    Attach clevis assembly (A) on top of drawbar.


  2. Tighten two cap screws (B) to specification 750 N·m (553 lb·ft).
