Clevis Assembly Use — Category 5 Drawbar

Before using PTO shaft, or whenever it might cause interference, remove clevis assembly.

RXA0111485
RXA0111485-UN-27OCT10

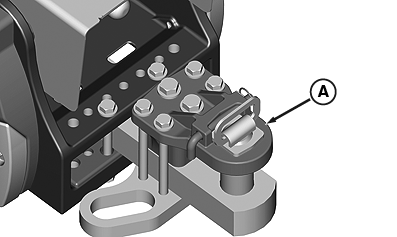

Clevis assembly (A) must be attached only to the top of the drawbar.

If towed implement also has a clevis assembly, insert pin only through tractor drawbar. DO NOT insert pin through all four members.

TO84419,0000107-19-20170713
