Use Correct Drawbar Pin — Category 5 to 4

Use Category 5 drawbar pin for implements that produce drawbar loads requiring more than 348 kW (467 HP) engine power level rating or 300kW (400 HP) PTO power level rating for proper operation. Contact implement manufacturer for information on how to properly convert implement to accept Category 5 drawbar pin.

RXA0141903
RXA0141903-UN-05JUN14

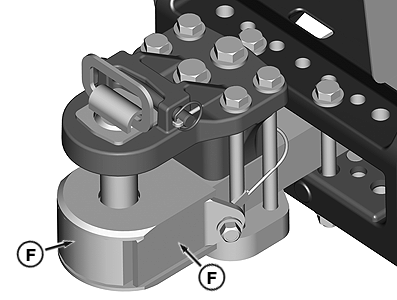

See your John Deere dealer to purchase an Adapter Kit (F) for tractors equipped with a Category 5 drawbar when attaching to implements equipped with a Category 4 hitch link if approved by implement manufacturer.

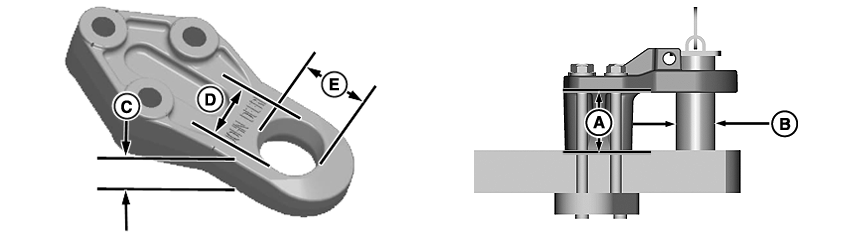

Use Category 5 drawbar pin furnished with tractor to attach implements that have a Category 5 hitch link. See table for dimensions. Consult implement Operator's Manual or manufacturer to determine proper size of drawbar pin for implement attaching system. Operating tractor and implements with drawbar category combinations which are improperly sized for implement power requirements could result in premature wear or failure of hitch components.

RXA0160175
RXA0160175-UN-10JUL17

Category

Hitch Link Dimensions

mm (in)

Tractor Drawbar

Implement Hitch Link

Hitch Pin Diameter (B)

Drawbar Opening Height (A)

Slot Length (E)

Slot Width (D)

(Minimum)

Link Thickness (C)

4

50 (1.97)

90 (3.54)

55 — 70 (2.17 — 2.75)

55 (2.17)

50 (1.97)

5

70 (2.76)

100 (3.94)

73 — 85 (2.87 — 3.35)

73 (2.87)

60 (2.36)

TO84419,0000108-19-20170918
