Carrier Transport

RW13091
RW13091-UN-07DEC88

Transport on Carrier Safely

Shift transmission lever into PARK, stop engine and remove key before working in hinge area.

Install hinge lock, originally equipped with tractor, on hinge cylinders before transporting tractor.

15 L engine equipped tractor: avoid equipment damage, remove exhaust tip before transport.

Remove hinge lock from hinge area before operating tractor.

Best method of transporting a disabled tractor is to haul it on a flatbed carrier.

Steer tractor straight ahead, shift transmission lever into PARK and turn OFF engine.

RXA0147953
RXA0147953-UN-06MAY15

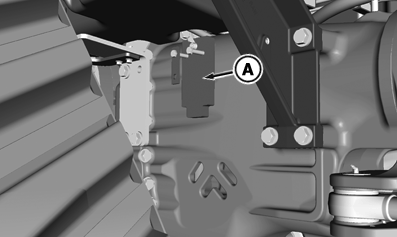

Remove left and right-hand hinge locks (A) from tractor frame storage location.

RXA0160311
RXA0160311-UN-27JUL17

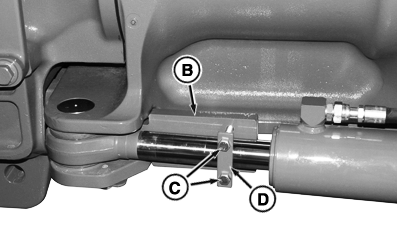

Installed Hinge Lock

Install lock (B) behind cylinder and secure with cap screws (C) and retaining plate (D). Tighten cap screws to hold in place.

Chain tractor to trailer securely and drive slowly.

Remove hinge locks before unloading tractor.

Replace locks on tractor frame storage location as shown (A).


“T” Hook Locations

To avoid accident or injury, securely chain tractor to carrier. Drive carefully.

Attach tie downs only to frame “T” hook slots and drawbar support when securing tractor on a carrier.

15 L engine equipped tractor: avoid equipment damage, remove exhaust tip before transport.

Transport a disabled tractor on a flat bed trailer.

  1. Engage PARK position.

  2. RXA0148245
    RXA0148245-UN-27MAY15

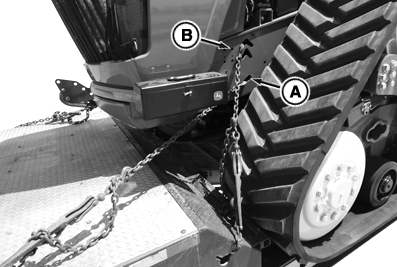

    Attach chain using left and right-hand side front tie down loops (A) and/or left and right-hand side “T” hook slots (B) and tension chains forward and down to trailer frame.

  3. RXA0148247
    RXA0148247-UN-27MAY15

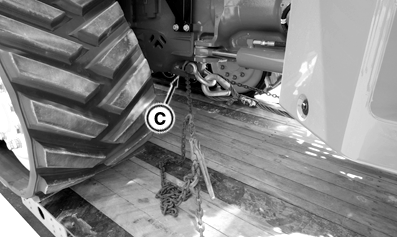

    Attach chain to rear tie down loop (C) on left and right-hand side of frame and tension chains forward and down to trailer frame.
  4. Use a protective material to prevent paint damage to drawbar support.

    RXA0148246
    RXA0148246-UN-27MAY15

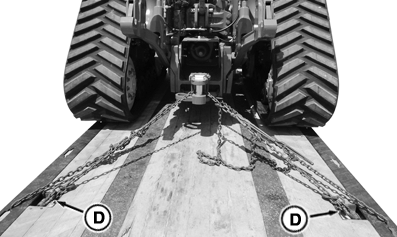

    Attach chains to each side of rear drawbar support (D) to secure tractor to carrier.

  5. RXA0153718
    RXA0153718-UN-30AUG16

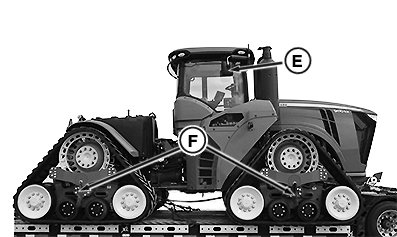

    Fold left and right-hand side mirrors (E) forward.
  6. Fold left and right-hand extremity lights forward, if equipped.
  7. Remove beacon light, if equipped.
  8. Attach over dimension flags (F) to axles.
  9. After traveling a short distance, check load shift to ensure tie downs are secure.

TO84419,0000156-19-20170727
