Access Implement Power Relay Module Fuses

Replacement fuse must be same rating as original.

Turn key to OFF position before replacing any fuses.

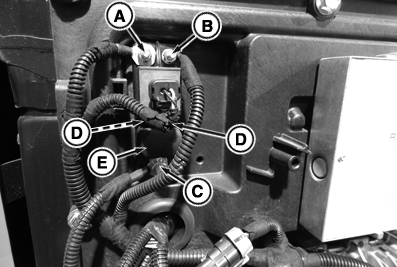

Remove cab back panel. In upper left-hand corner is a relay module to route power to implement CAN Bus Breakaway Connector.

RXA0142135
RXA0142135-UN-05JUN14

Implement Power Relay Module

RXA0142136
RXA0142136-UN-05JUN14

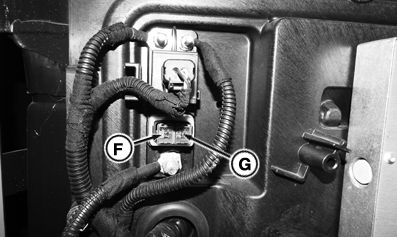

Top left-hand module stud is switched power lug (A) protected by a 60 amp fuse (F). Top right-hand module stud is unswitched power lug (B) protected by a 30 amp fuse (G).

Bottom center is the battery power input stud (C).

To Change Fuses

  1. Press down on fuse cover tabs (D) and remove fuse cover (E).

  2. To remove, pull fuse straight back.

  3. Insert new fuse.

  4. Replace cover and slide tabs over cover edge to hold in place.

TO84419,00001DA-19-20170724
