Engine Coolant Heater Use—15 L Engine

TS210
TS210-UN-23AUG88

To avoid electrical shock or fire, use 3-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15-amp rating, suitable for outdoor use. Always plug electrical cord into 120 volt outlet protected by GFI (Ground Fault Interrupter).

Before connecting heater to power source, be sure that element is immersed in coolant. NEVER energize heater in air. Doing so can cause element sheath to burst causing personal injury.

Ground fault interrupter on tractor protects tractor only, not electrical wiring supplying power to tractor. Test ground fault interrupter before each use.

Extremely cold weather may require 1—2 hours to heat engine.

RXA0141916
RXA0141916-UN-05JUN14

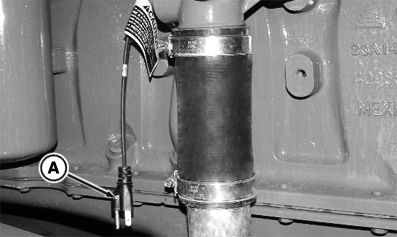

Connect engine coolant heater plug (A), located on right-hand side of engine, to a ground fault protected 120 volt electrical outlet.

A 1000 W engine coolant heater is available from your John Deere dealer.
