Change Starting Fluid Canister

Do not use starting fluid near fire, sparks or flames. Read caution information on container. Protect container against damage. Do not carry starting fluid cans inside cab.

  1. RXA0141914
    RXA0141914-UN-05JUN14

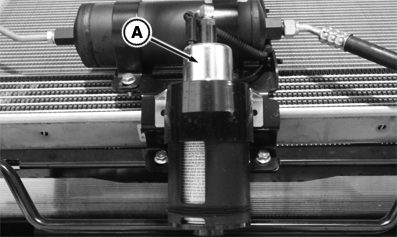

    Raise hood to access canister (A).


  2. Remove safety cap and plastic spray nozzle from new can.

  3. Loosen canister and remove old can.

    To avoid drawing dust into engine, always keep starting fluid can in position or clean bottom of canister and install bottom side up.

  4. Install new can and tighten canister.

TO84419,000039B-19-20170725
