Cab Recirculation Air Filter

Cab air filters are not designed to filter out harmful chemicals. Follow instructions in implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

Replacement interval can vary according to operating conditions. Normal service is 1000 hours or annually, whichever occurs first.

  1. Close entry door to prevent debris getting into cab.

  2. RXA0134243
    RXA0134243-UN-31JUL13

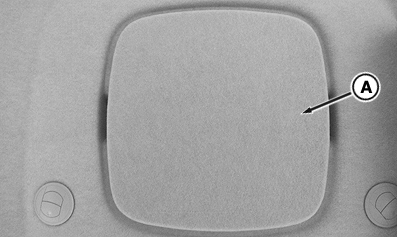

    Remove upholstery cover (A) in headliner by grasping outer edges and pulling down.


  3. RXA0100957
    RXA0100957-UN-17MAR09

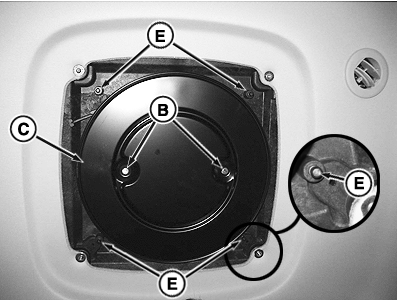

    While holding cover (C) in place with one hand, remove fasteners (B) allowing cover to be lowered.


  4. Using a clean cloth, wipe down inside and outside of filter cover.

  5. RXA0100959
    RXA0100959-UN-17MAR09

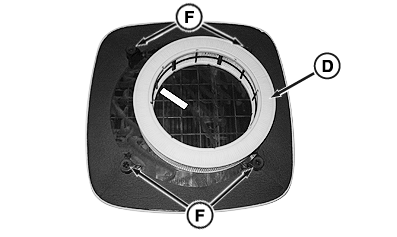

    Remove and discard old recirculation filter (D).


  6. Install new filter.

  7. Install cover (C) and tighten fasteners (B).

  8. Install upholstery cover by lining up ball studs (E) with clip nuts (F) and firmly push up.

TS36762,000014F-19-20170629
