Cab Fresh Air Filter

Cab air filters are not designed to filter out harmful chemicals. Follow instructions in implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

Replacement interval can vary according to operating conditions. Normal service is 1000 hours or annually, whichever occurs first.

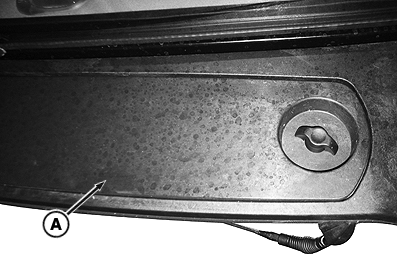

  1. RXA0099137
    RXA0099137-UN-19SEP08

    Support cover (A).


  2. Filter cover latch has three positions; open, latched, and locked. Cover is not locked when in latched position.

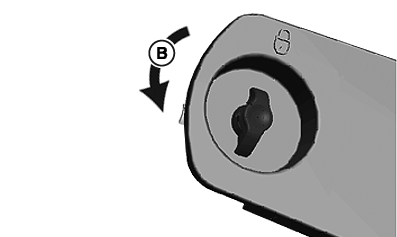

    RXA0155037
    RXA0155037-UN-18OCT16

    Turn knob fully counterclockwise (B) to unlatch cover.

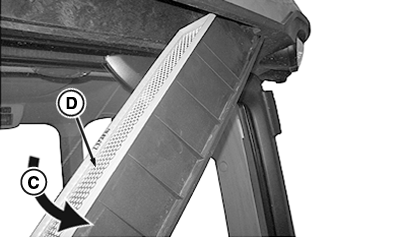

  3. RXA0155036
    RXA0155036-UN-18OCT16

    Swing down (C) cover.


  4. Remove and discard old fresh air filter (D).

  5. Wipe down inside and outside of filter cover with a clean cloth.

  6. Install new filter.

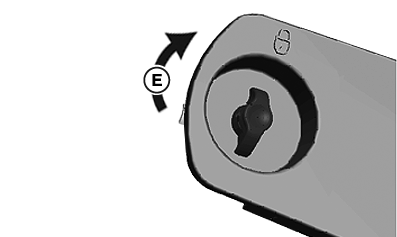

  7. RXA0155035
    RXA0155035-UN-18OCT16

    Close cover and turn knob fully clockwise (E) to securely lock latch.

TS36762,0000150-19-20170706
