SCV Pilot Valve Filter

1.
   RXA0152694-UN-11JUL16

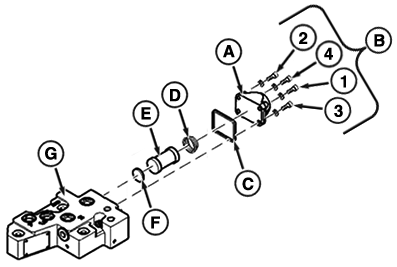

   Remove cap screws (B).

---




2.
   RXA0152693-UN-11JUL16

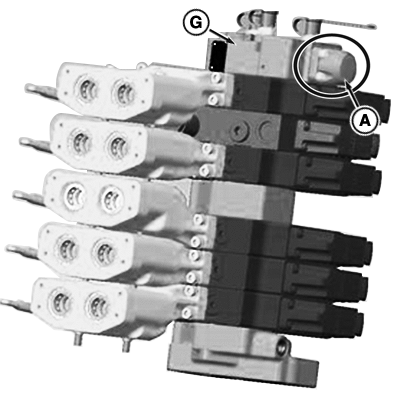

   Remove SCV pilot filter cover (A) from SCV pilot filter housing (G).

---




3. Remove old spring (D), SCV pilot filter (E), and O-ring (F).

4. Install new O-ring, SCV pilot filter, and spring.

5. Replace gasket (C) and SCV pilot filter cover.

6. Install cap screws and tighten to specification in sequence (1, 4, 3, 2).

   Cap Screws	Torque	6 N·m (53 lb·in)
