Change Front Grille Halogen Light Bulbs

  1. Open hood, see Open Hood in Service-General Information section of this Operator’s Manual.

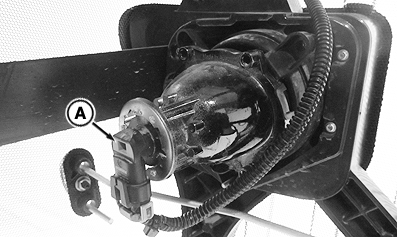

  2. RXA0134246
    RXA0134246-UN-31JUL13

    Right-Hand Side Shown

    Rotate halogen headlight (A) counterclockwise 1/4 turn and remove.

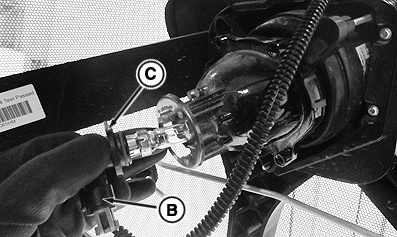

  3. RXA0134247
    RXA0134247-UN-31JUL13

    Right-Hand Side Shown

    Disconnect wiring harness plug by lifting retaining tab (B).


  4. Replace light bulb assembly (C).

  5. Install new light bulb in reverse order of removal.

  6. Close and secure hood.

TS36762,0000167-19-20170705
