Adjust Headlights

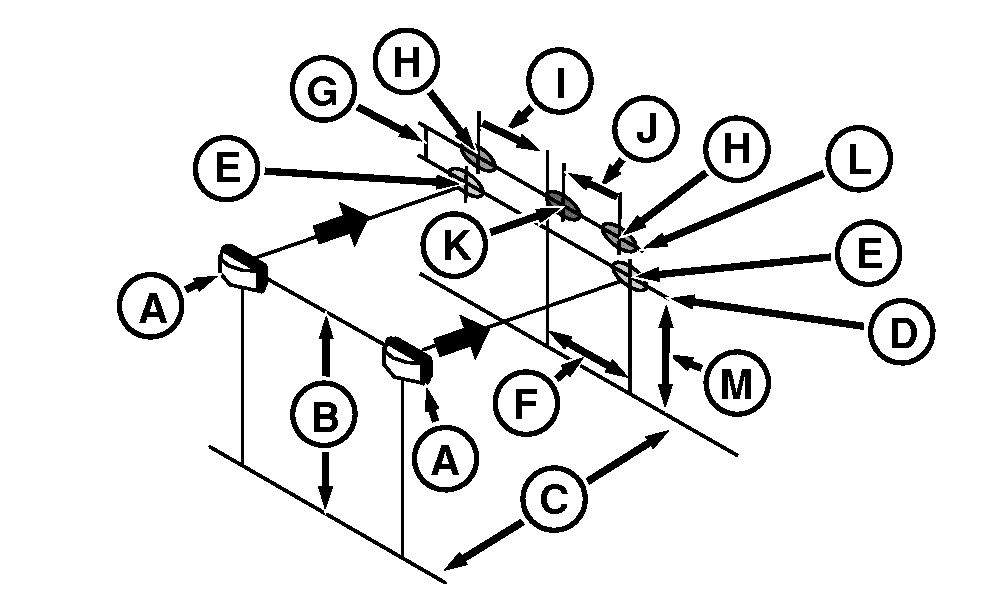

RXA0161046-UN-11OCT17

1. Park tractor on level surface with low beam road lights (A) 7.5 meters (25 ft) (C) from a straight wall. Tractor must be perpendicular to wall. Turn on low beam road lights.

2. Measure distance (B) from center of road light low beam lamps to ground.

3. Mark a horizontal line (D) on wall 0.7 times height (B).

4. On wall, mark each road light low beam center (E).

5. Determine total distance between centers of road light low beams.

6. Calculate one-half distance determined in step 5.

7. Mark vertical line at distance calculated in step 6 from center of right-hand low beam center.

8. Distance (F) between center of road light low beam and center line should be 914 mm (36 in). Adjust as necessary. See Adjust Front Grille Lights in this section of this Operator’s Manual.

9. Turn on road light high beams.

10. Adjust road light high beams so edge of bright area (L) is at least one tenth of distance (M) above road light low beam centers (E). Distance (G) is approximately 355 mm (14 in).

11. On wall, mark each road light high beam center (H), then mark a horizontal center line between center of road light high beams.

12. Distance (I) between center of road light high beams and center line should be 787 mm (31 in). Adjust as necessary. See Adjust Front Grille Lights in this section of this Operator’s Manual.

13. Configure inner hood lights ON.

14. Turn on field lights. Inner hood light beam center (K) should be on horizontal line between centers of road light high beams. Adjust as necessary.

15. Distance (J) between inner hood light beam center (K) and light center line should be 635 mm (25 in). Adjust as necessary.
