Change Front, Side And Rear Cab Roof Light Bulb

  1. RXA0134250
    RXA0134250-UN-31JUL13

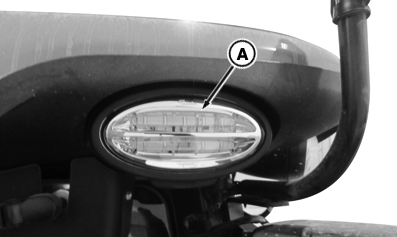

    Push down light fixture latch tab (A). Remove fixture.


  2. RXA0134251
    RXA0134251-UN-31JUL13

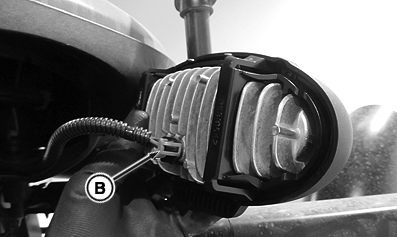

    Disconnect harness connector (B) and replace light assembly.


  3. Connect harness connector.

  4. Insert fixture into cab roof until it seats and tab snaps into place.

TS36762,000016A-19-20171024
