Change Dome Light Bulb

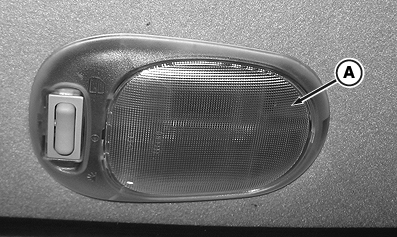

  1. RXA0099130
    RXA0099130-UN-19SEP08

    Remove lens cover (A).

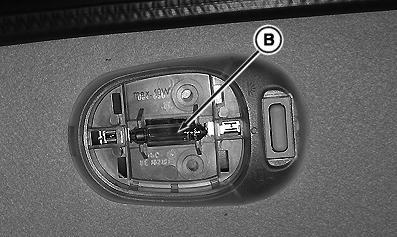

  2. RXA0099128
    RXA0099128-UN-19SEP08

    Grasp light bulb (B) firmly and pull straight down.


  3. Gently push new bulb into fixture until it seats.

  4. Reinstall cover.

TS36762,000016C-19-20170705
