Change Extremity Warning Light Bulb

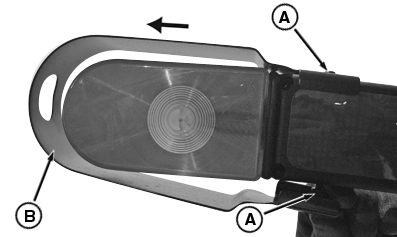

  1. RXA0108609
    RXA0108609-UN-29JUL10

    Loosen screws (A).


  2. Slide shield (B) away from lens cover to remove.

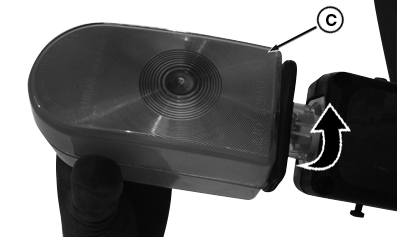

  3. RXA0108611
    RXA0108611-UN-29JUL10

    Turn lens cover (C) counterclockwise to access light bulb.

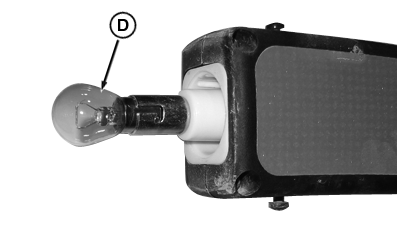

  4. RXA0108613
    RXA0108613-UN-29JUL10

    Twist old bulb (D) to remove.


  5. Install new bulb.

  6. Reassemble housing in reverse order of disassembly.

TS36762,000016F-19-20170705
