CommandARM™ ISOBUS Shortcut Button (ISB)

In an ISOBUS-system operator can activate function of implement over ISOBUS via Implement’s Operator Interface on display. See ISOBUS controller’s operator’s manual.

After activation, operator can change screen of display in order to operate another implement or interact with other applications.

Deactivation of functions on first implement is not possible unless operator manually switches back to corresponding screen of first implement. ISB provides a direct method to inform all ISOBUS participants about operators desire to deactivate functions that were activated by an ISOBUS control.

Read appropriate operator’s manual. ISB button function is proprietary to implement manufacturer. Verify button function in a safe and open area that is clear of bystanders.

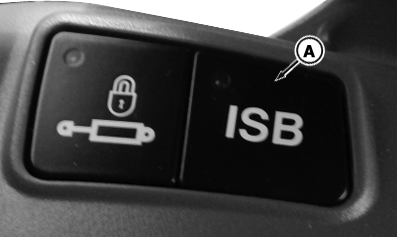

RXA0136449-UN-06NOV13

Example: Implement currently using ISOBUS Class 3 automation goes to its safe state. See Tractor-Implement Automation™ (TIA™) section of this Operator’s Manual.
