Install GreenStar™ System Components

This vehicle employs one or more CAN bus networks. Connecting unapproved devices to vehicle network(s) may cause machine to degrade in performance or fail to perform properly. Further, unapproved devices that attempt control of tractor functions should not be connected to implement network (ISOBUS).

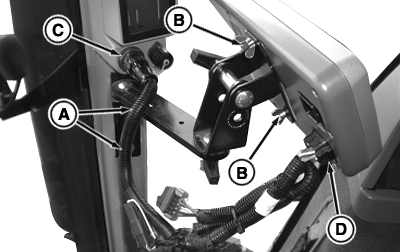

RXA0104665
RXA0104665-UN-10SEP09

  1. Attach bracket to corner post mounts (A).

  2. Attach display to bracket using wing nuts (B) (provided with display).

  3. Attach harness to corner post connector (C) and lower GreenStar™ display connector (D) on back of display.

  4. Position display so it is comfortable to reach and does not obstruct operator view.

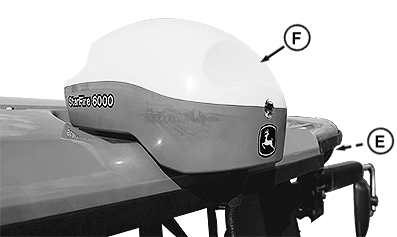

  5. RXA0153452
    RXA0153452-UN-19AUG16

    Connect StarFire™ receiver connector (E) to Starfire™ receiver (F).

    See your John Deere dealer for compatible adapter harnesses.


StarFire is a trademark of Deere & Company

TS36762,0000195-19-20161118
