Install Machine Communications Radio (MCR) Antenna

This antenna is only available for machines that have a factory installed Machine Communications Radio. Refer to John Deere Machine Communications Radio operator’s manual for more information.

  1. Remove antenna from storage under instructional seat.

  2. RXA0131714
    RXA0131714-UN-15APR13

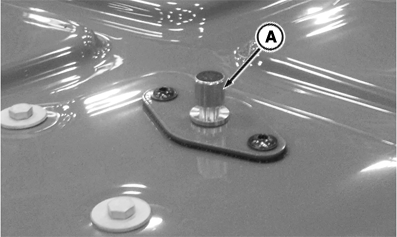

    Remove cap from MCR antenna post (A) from rear left roof.


  3. RXA0131715
    RXA0131715-UN-15APR13

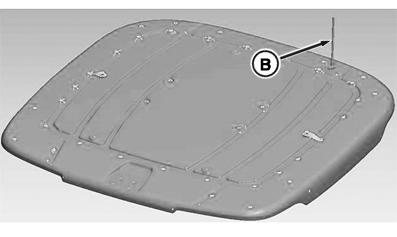

    Screw MCR antenna (B) onto MCR antenna post.

TS36762,0000196-19-20161118
