Connect AutoTrac™ Assisted Steering System

Electro-hydraulic steering is required for AutoTrac™ to function.

Refer to Generation 4 Applications operator's manual for detailed instructions.

•
  RXA0153453-UN-18AUG16


  RXA0158424-UN-28MAR17

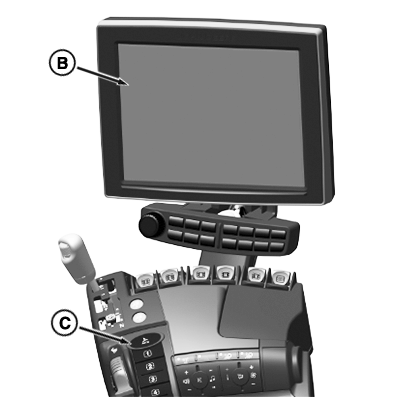

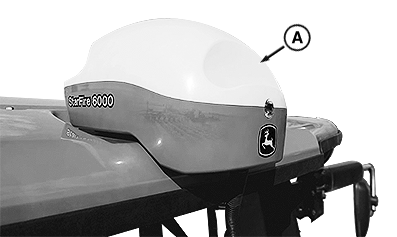

  AutoTrac™ system utilizes StarFire™ position receiver (A) and Generation 4 CommandCenter™ Display (B) to assist operator in steering tractor. Other displays are used as well. See Multiple Displays in CommandCenter™ section of this Operator’s Manual.
• Operator must take manual control at end of each pass and when field obstacles are encountered. Regain steering control by turning steering wheel. After turn is made, press AutoTrac™ Resume button (C) to engage AutoTrac™.

See your John Deere dealer for compatible adapter harnesses.
