Change Differential Lock Disengagement Steering Angle

Higher disengage steering angles require operator to turn steering wheel further before differential lock disengages. Use in high slip field conditions that require large steering corrections to maintain desired path. Differential lock remains engaged while making steering corrections across field, but automatically disengages on headland turns.

Moderate disengage steering angles are useful in loader situations. Differential lock remains engaged when entering into a pile, but quickly disengages while turning.

Lower disengage steering angles allow differential lock to disengage sooner (less movement of the steering wheel), which is useful in high traction (for example: concrete) conditions. Differential lock remains engaged during straight-line work, while minimizing tractor jerk when disengaged or reengaged during turns.

Differential lock disengagement steering angle is retained through key cycles.

Adjust steering angle to disengage differential lock:

1.
   RXA0133712-UN-16JUL13

   Select Transmission Shortcut button on Navigation Bar.

---

2.
   RXA0130326-UN-11JAN13

   Select Advanced Settings icon.

---

3. Select Settings tab.

4.

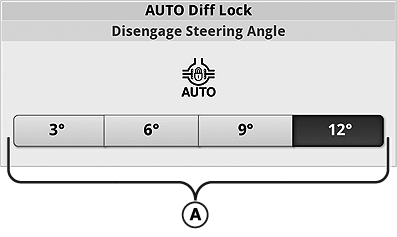

   RXA0137847-UN-13DEC13

   Select desired steering angle to disengage differential lock using Steering Angle toggle bar (A).

---
