Adjust Load/Depth Control (Draft Response)

Load/depth control allows control of movement of hitch while working. Correct adjustment provides better control of implement depth and operating efficiency. Examples of results obtained using various settings are shown below.

  1. RXA0133710
    RXA0133710-UN-16JUL13

    Press rear hitch shortcut button on navigation bar.


  2. Select load depth module.

  3. RXA0143172
    RXA0143172-UN-01JUL14

    RXA0140227
    RXA0140227-UN-31MAR14

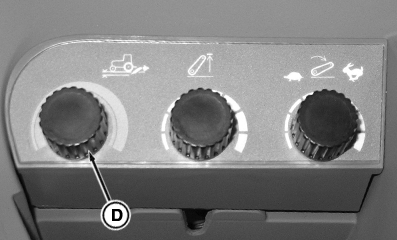

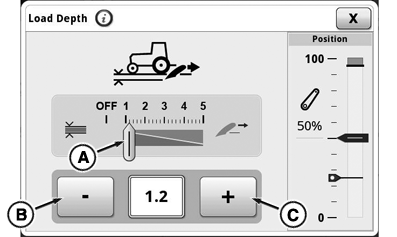

    Set load depth value (A) with decrease (B) and increase (C) value buttons or load depth hitch dial (D).

    • For position only control, turn load depth setting to OFF. See Using Position Control in this section of this Operator’s Manual.
    • Higher settings are used for draft control. See Using Draft Control in this section of this Operator’s Manual.

TS36762,00001D4-19-20170901
